European style high quality energy efficient thermal break aluminum triple glaze passive house windows

European style high quality energy efficient thermal break aluminum triple glaze passive house windows

Product details1. Profile6063-T5 Thermal break aluminum alloy2. Profile brandGermany system, Domestic system3. Surface finishPowder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint. 4. Profile thickness1.7mm, 5. Glass option...

Parameter
Related products

Parameter

Product details

1. Profile	6063-T5 Thermal break aluminum alloy
2. Profile brand	Germany system, Domestic system
3. Surface finish	Powder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint.
4. Profile thickness	1.7mm,
5. Glass option	Triple insulated glass: 5/6mm+ 16A+5/6mm+16A+5/6mm, warm edge spacer low-e & argon gas
7. Hardware	Germany imported brand
8. Seal & strip	Germany Orginally imported EPDM Rubber sealing strip, black or grey color
9. Screen optional	Stainless steel mesh screen
10. Sunshading	Blinds, roller shutter etc
11. Applications	Commercial building, Office, apartment, villa, basement, garden, hotel, hospital, residential housing.

What is passive window?

A "passive house window" typically refers to a window that is designed as part of a passive building strategy( or net-zero energy building designs), aiming to maximize energy efficiency without relying on active mechanical systems for heating, cooling, or ventilation.
Passive windows are extremely energy-efficient windows.

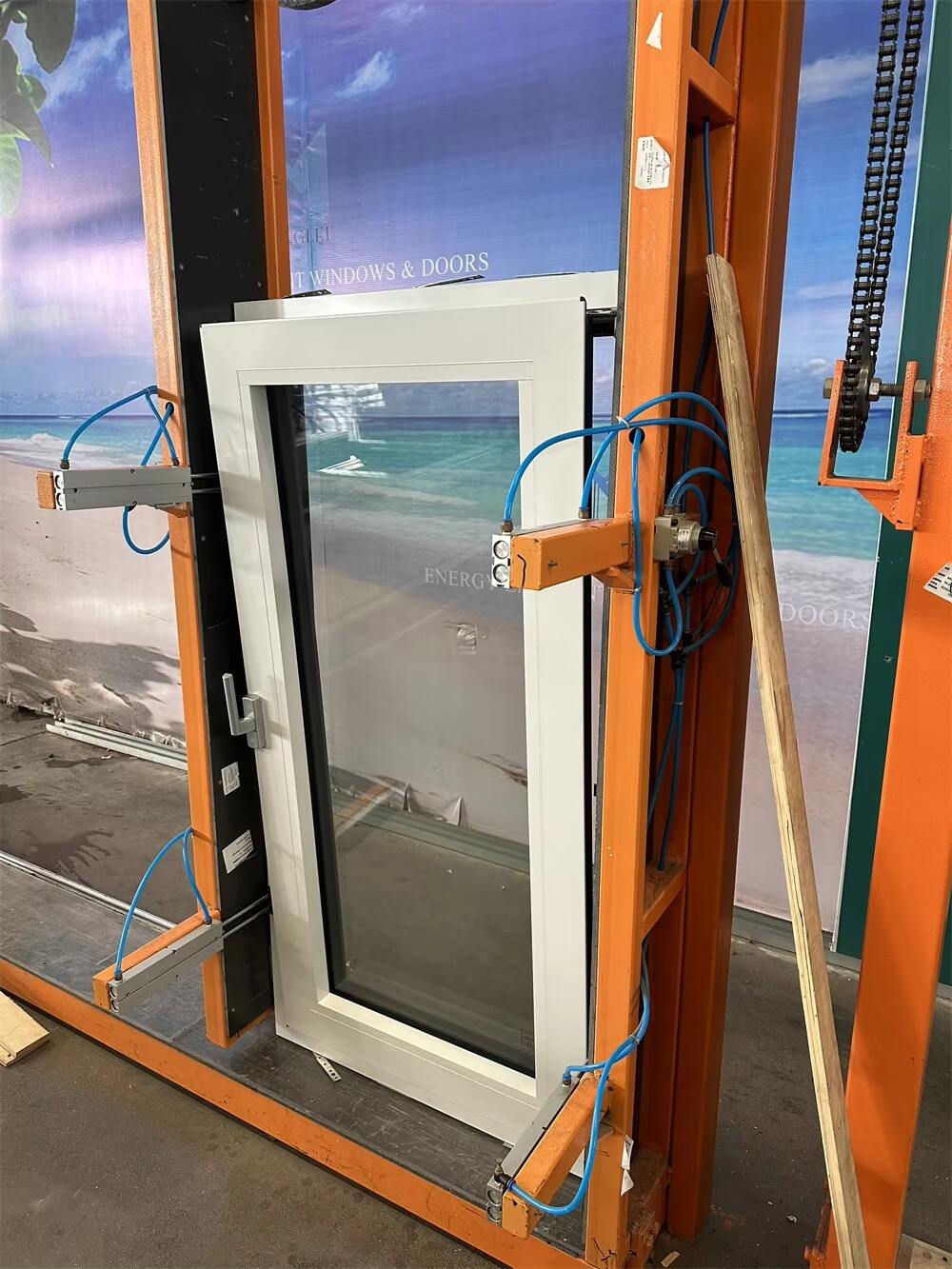

Real Pictures shown of Tilt&Turn window (101series Passive window)

Tilt & Turn Window-Front

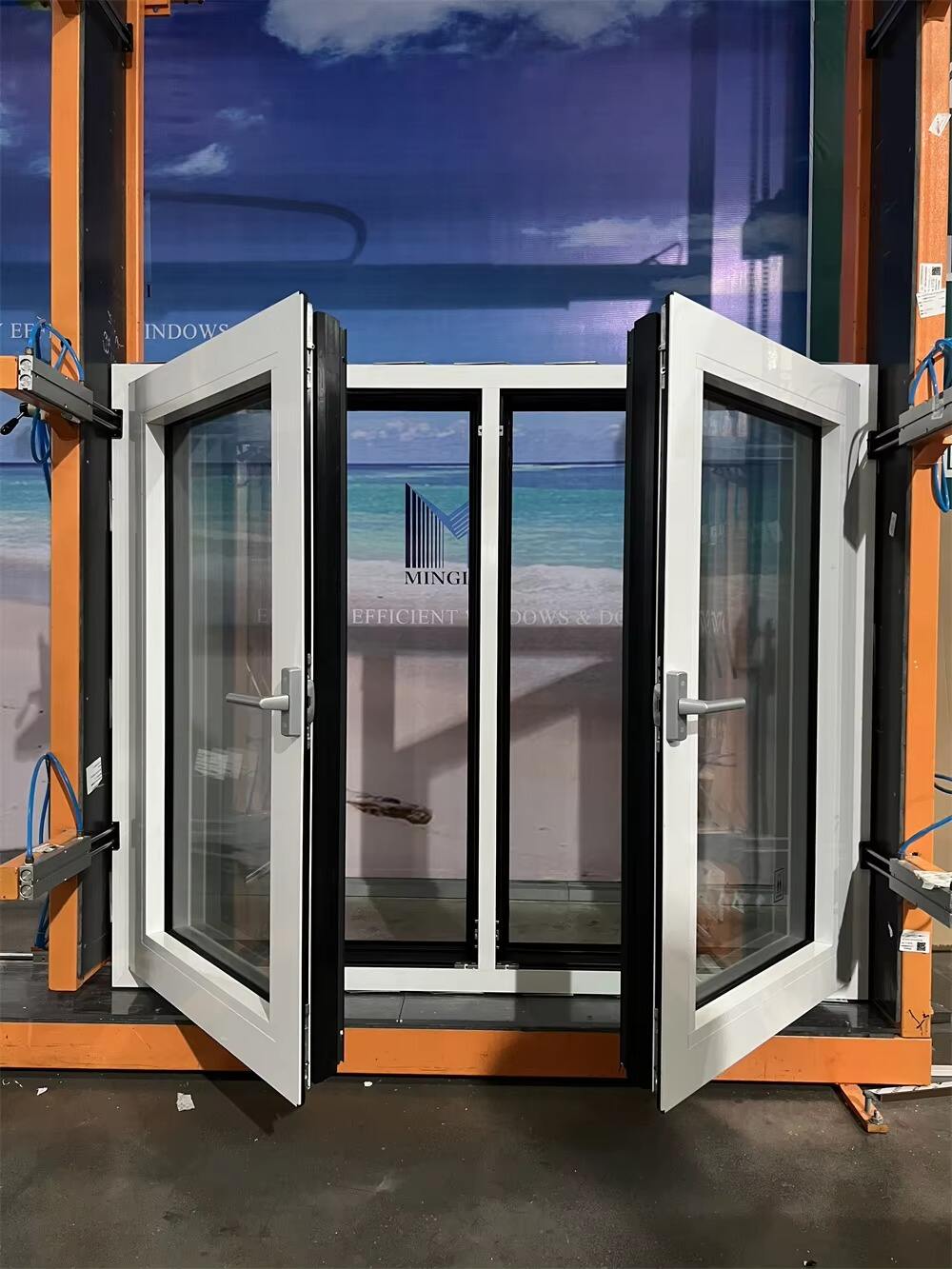

Tilt&Turn window(inward opening)

Concealed Hardware hinged

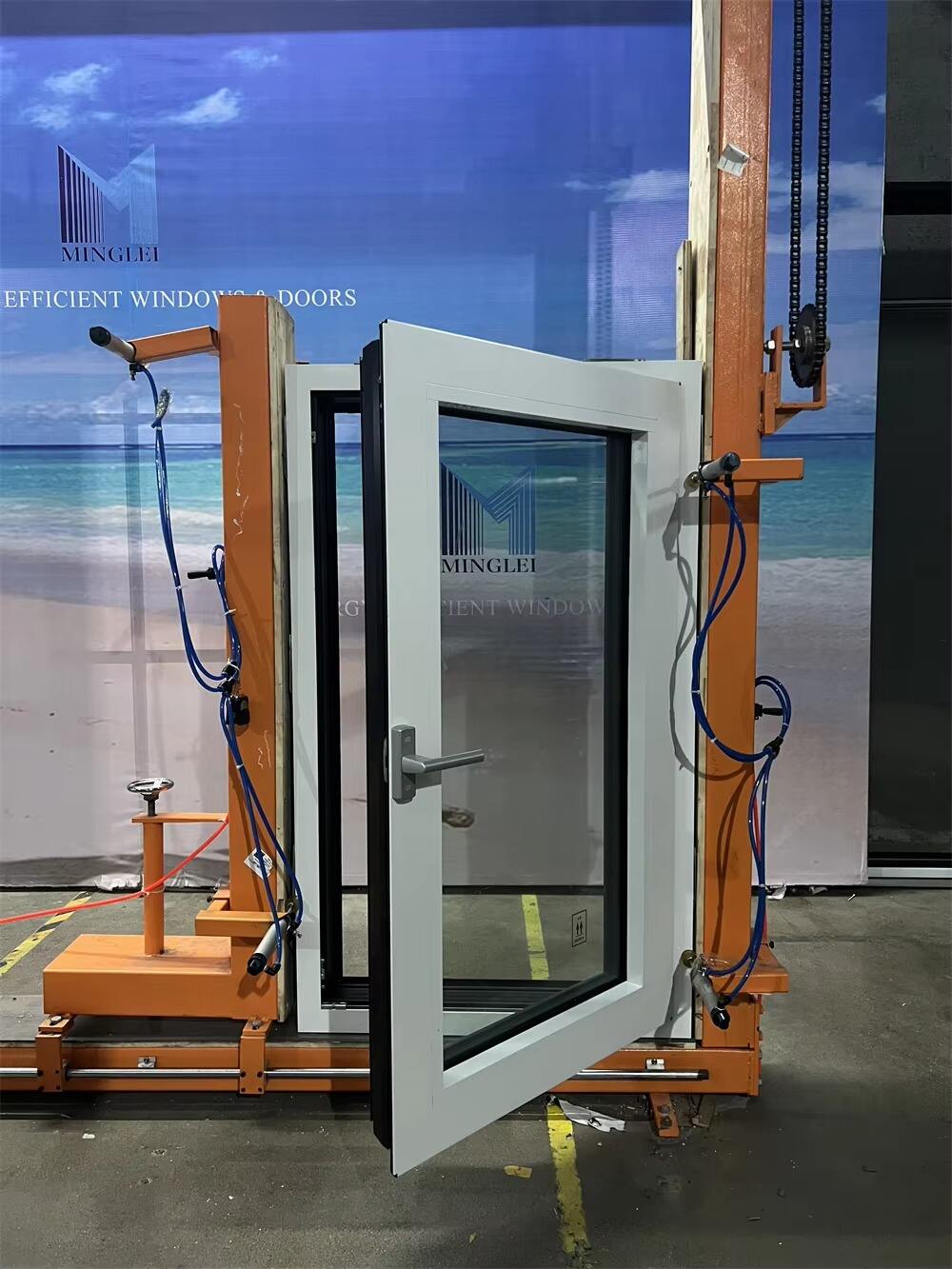

Tilt&Turn window(tilt opening)

Here are some key aspects for passive house windows:

Energy Efficiency: Passive windows are engineered with high-performance glazing, advanced frames, and insulation techniques to achieve low U-values (thermal transmittance). This minimizes heat loss in cold weather and reduces heat gain during warmer periods.


Solar Gain Optimization: These windows are designed to harness natural sunlight for passive solar heating during winter
while often incorporating features (like low solar heat gain coefficients) to prevent overheating in summer.

Integration in Passive House Design: They are a crucial element in passive house or net-zero energy building designs. By combining with other building envelope components (such as insulation, airtight construction, and controlled ventilation), passive windows contribute to maintaining a comfortable interior climate with minimal energy consumption.

Airtightness and Reduced Thermal Bridging: The frames and installation details are designed to be extremely airtight and to minimize thermal bridging, thereby reducing drafts and heat leakage.
In summary, passive windows support sustainable building practices by reducing reliance on active heating and cooling systems, lowering energy consumption saving bills, and improving overall indoor environmental quality.

European style high quality energy efficient thermal break aluminum triple glaze passive house windows factory

Details Images

European style high quality energy efficient thermal break aluminum triple glaze passive house windows details

Hardware:

Germany Imported Brand

Concealed Hardware

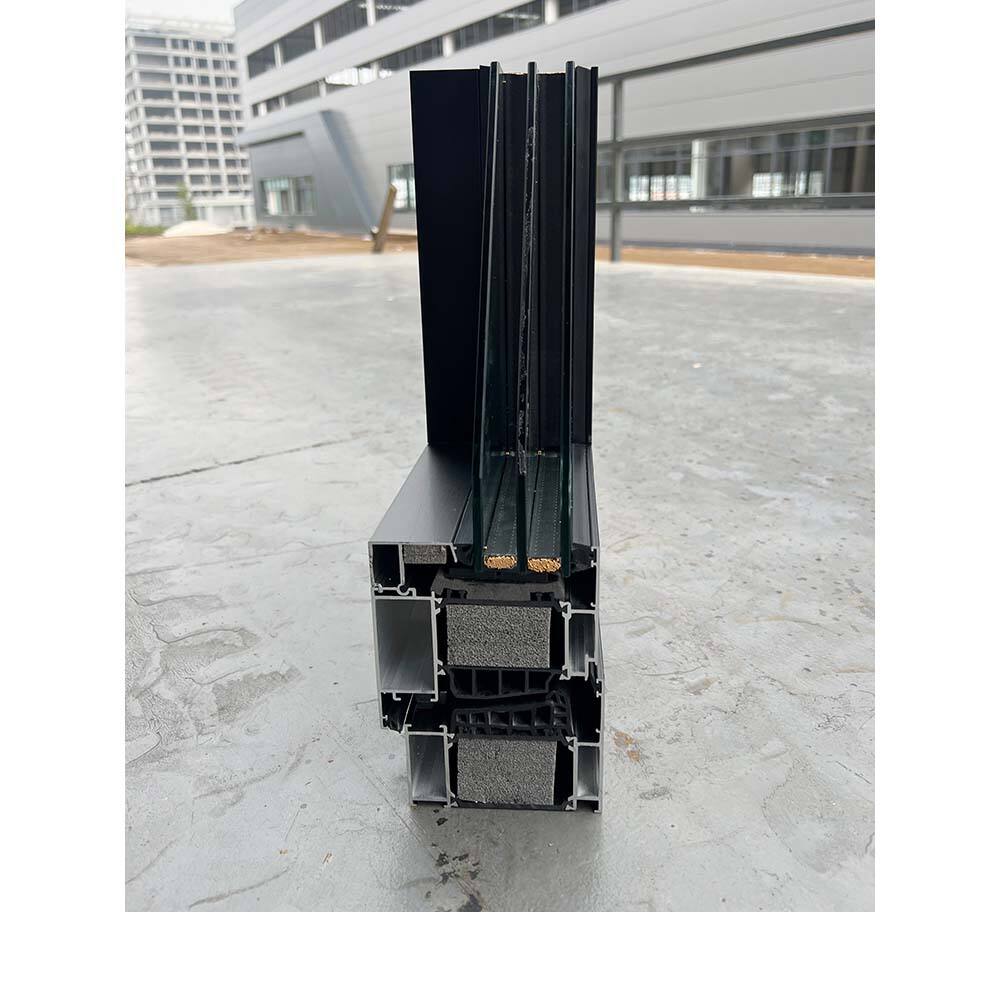

Thermal stripe: 64mm wide special-shaped multi-cavity Technoform brand PA66 nylon

Handle:

Germany Imported Brand

Safe Corner, intimate choice.

The corners of the window sashes are equipped with PA66 nylon corner protectors, which are safe and beautiful.

European style high quality energy efficient thermal break aluminum triple glaze passive house windows supplier

Customized color product european style high quality energy efficient thermal break aluminum triple glaze passive house windows-0

product european style high quality energy efficient thermal break aluminum triple glaze passive house windows-1

product european style high quality energy efficient thermal break aluminum triple glaze passive house windows-2

Advantage

 For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them.And they're available with tough anodized or baked-on finishes.

Packing & Delivery

Our company

Hangzhou Minglei Industry Co., Ltd., which have been specialized in windows and doors since 2008 year.

Based on our advanced & exquisite manufacturing technique, and abundant product application and service experience, We can offer extensive range of windows and doors products, which can meet EU CE and USA ASTM standards on windows & doors technologies.

Minglei is dedicated to contribute to the prospective and sustainable development of buildings, and creating better life for human beings.

FAQ

Q: Are you a trading company or a manufacturer? A: We are manufacturer and have our own trading company, which engaged in high quality windows & doors manufacturing for domestic & abroad market. Q: What is your lead time? A: 20-35 days upon of deposit received and shop drawing confirmed (We arrange shop drawing before manufacturing to double confirm all the windows details). Q: What is the standard size and design of your windows and doors? A: As windows and doors are customized products. we manufacture according to your specific dimension special requirements. And we also have engineers to give improvement suggestions. Q: What about your window systems? A: We use Germany high insulation system with thermal break technology. Q: Will we need to install the glass (onsite glazed) or do your windows come with the glass installed? A: We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and it is easy for our buyer to install the whole windows/doors. Onsite glazed are recommended for big sized products. Q: Do you know what is a U-Factor/Value? The U-factor/Value measures how well a fenestration product prevents heat from escaping a home or building. The lower the U-Factor/Value is, the better a product is at keeping heat inside the building, thus is a better insulator. The most energy efficient window we made is Germany PHI certified passive housing standard window and door, which Uw is 0.79 W/ m2* K(metric), turns to U factor is 0.14 ( imperial). Q: What is Solar Heat Gain Coefficients? That measures the fraction of solar energy transmitted and tells you how well the product blocks heat coming into the house caused by sunlight. SHGC is measured on a scale of 0 to 1; values typically range from 0.25 to 0.80. The lower the SHGC, the more a product is blocking solar heat gain. Blocking solar heat gain is particularly important during the summer season in warmer climates. By contrast, people in cooler climates may want solar heat gain during the cold winter months to lessen the cost of heating the home

Minglei Show Case

European style high quality energy efficient thermal break aluminum triple glaze passive house windows manufacture

MINGLEI

The brand for European style High-Quality energy efficient thermal break aluminum triple glaze passive house windows. Designed to increase energy efficiency by serving as a barrier against the external climate. MINGLEI has ensured that the windows are made of the highest quality materials with top-notch insulation abilities to keep you comfortable.

Fitted with triple glaze known for its ability to provide superior thermal efficiency. Provides a cushion of insulation trapping air between each layer of glass to reduce heat loss and prevent unwanted noise from coming in. This keeps your home pristine peaceful and energy-efficient.

To improve the energy efficiency even further MINGLEI has added thermal breaks. The thermal breaks create a separation in the window frames which reduces the transmission of heat and cold. This ensures that the window is energy saving and therefore eco-friendly too.

Designed to be passive house certified meaning that they exceed the highest energy efficiency standards. Provides superior heating and cooling making your home comfortable all year round. The passive house design follows strict guidelines ensuring that they function not only as windows but as insulation too.

Come in a European style meaning they reflect elegance finesse and sophistication. The combination of aluminum and triple glaze is seamless and elegant in design providing a modern style to any home.

MINGLEI is a brand that ensures products are of High-Quality efficient and eco-friendly. They maintain this approach by using the highest standard materials to provide long-lasting durability for their windows.
